DC Wattmeter Analizer Pzem-015 200Vdc 50A 100A

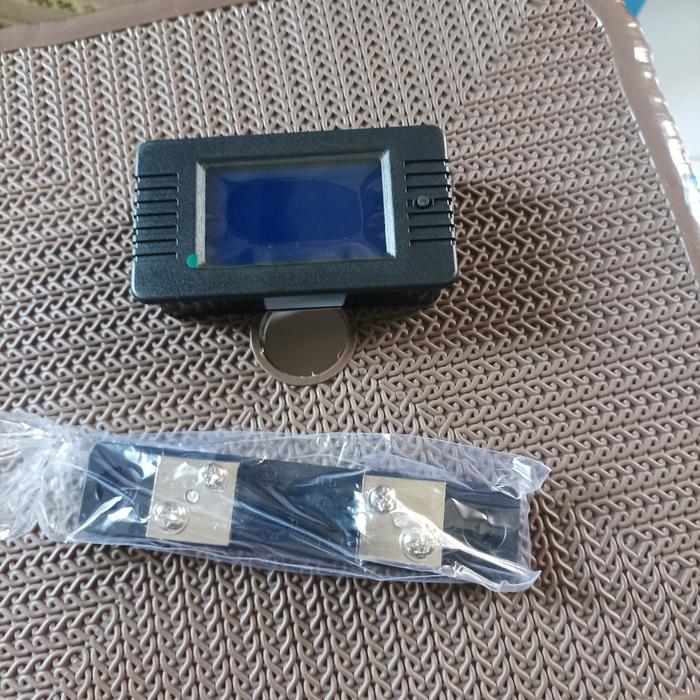

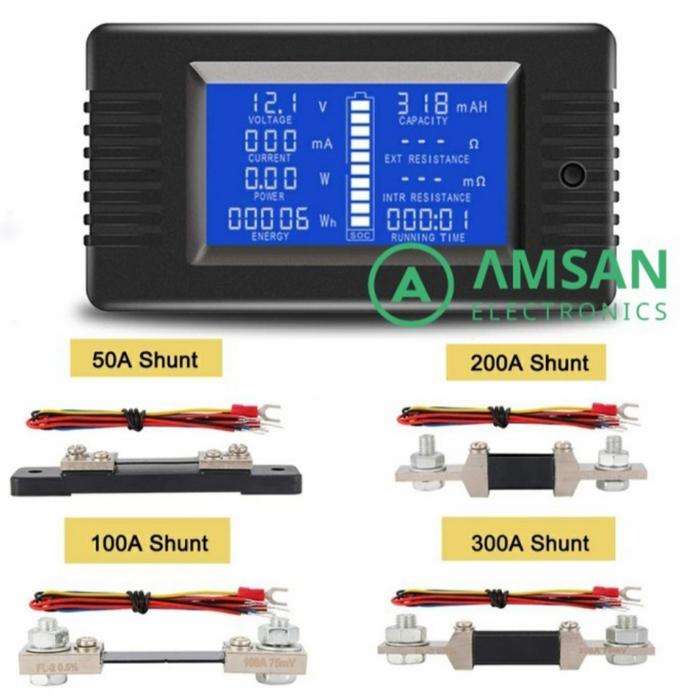

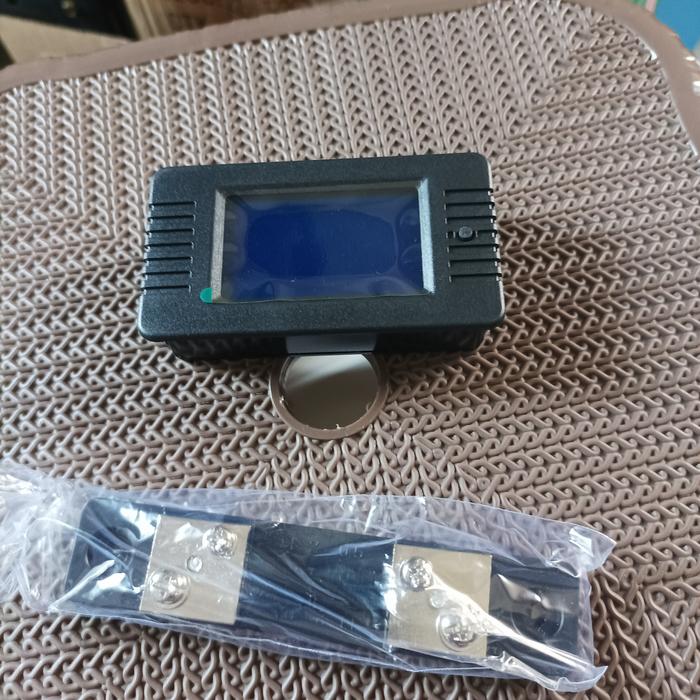

Deskripsi Battery analyzer Feacefair PZEM-015 voltmeter ammeter batrai monitor Description: Feacefair PZEM-015 with 50A, 100A, 200A, 300A shunt 9 major functions Full viewing angle LCD Screwless installation Size: 89.6x49.6x24.25mm Display size: 51x30mm This meter is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time of various types of batteries, and display measurement data through LCD. Current : 0-300A ;1A shows 999mA Voltage : 0-200V ;10V display 9.99V Power : 0-60000W ;10W display 9.99W Energy consumption : 0-9999kWh ;1kWh display 999Wh Impedance : 0-1000 Ω ;100 Ω; shows 99.9 Ω Capacity : 0-1000AH, 1AH shows 999mAH Internal resistance : 0-999mΩ; format: 999mΩ Running time range: 0-999 hours, format 0:00:00~999:59 (overflow to 0) Remaining battery power: Displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity. Package included: 1 x PZEM-015 Battery Tester 1 x 50/100/200/300A current shunt 1 x English manual
