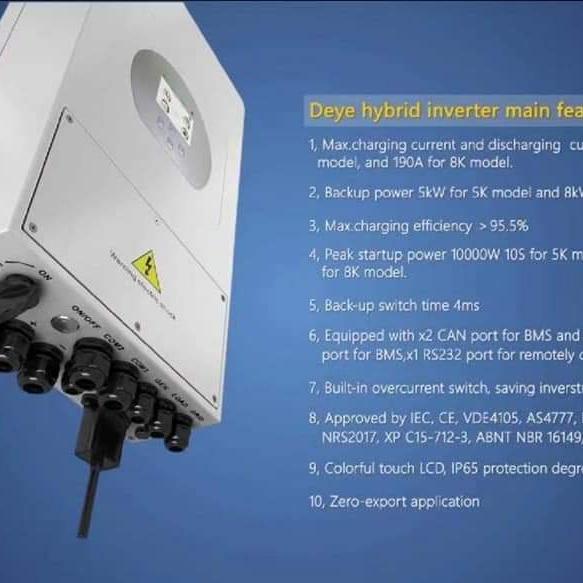

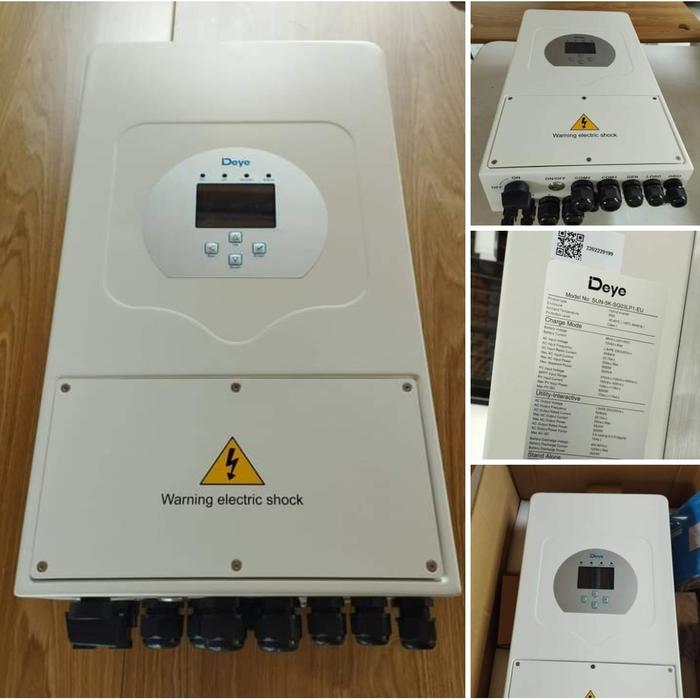

Deye Hybrid Inverter Bidirectional 48V 5500W 5.5KVa Solar Power

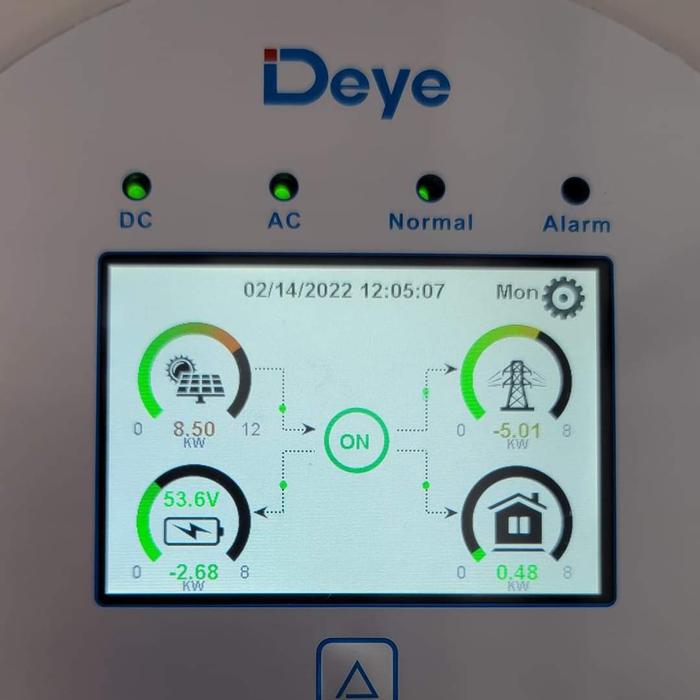

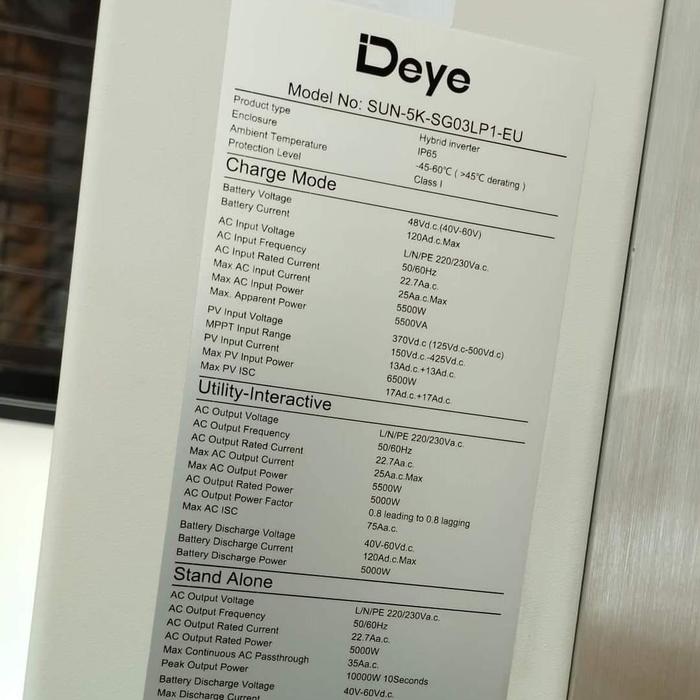

Deye Hybrid bidirectional 48v 5500VA 1. Hybrid On Off Grid Inverter 2. Wifi Monitoring System =========================================== Spesifikasi inverter : BATTERY INPUT Batttery type: Lead-Acid or Li-Ion Battery voltage range: 40-60 V Max. charging current: 120A Max. discharging current: 120A External temperature sensor: Yes Charging curve: 3 Stages/Equalization Charging strategy for Li-Ion battery: Self-adaptation to BMS DC INPUT - Max PV Input: 6500W - Number of MPPT: 2 - Number of DC input: 1/1 - Rated PV input voltage: 370V (125V-500V) - Start-up voltage: 125V - MPPT Voltage Range: 150-425V - Full Load DC Voltage Range: 300-425V - Max DC Input Current: 13A/13A - Max DC Input Short Circuit Current: 17A/17A OUTPUT AC - Rated Power and UPS Power: 5000W - Max Output Power: 5500W - Rated Output Current: 22.7A - Max Output Current: 25A - Max Continous AC Passthrough: 35A - Peak Power (off grid): 2 time of rated power, 10 S - Output Voltage amp; Freq: 50/60Hz, L/N/PE, 220V/230V - THDi: lt;3% - Power Factor: 0.8 leading.....0.8 lagging EFFICIENCY - Max Efficiency: 97.6% - European Efficiency: 97% - MPPT Efficiency: 99.9% PROTECTION Integrated: PV input lightning protection, anti-islanding protection, PV reverse polarity, insulation resistor detection, residual current monitoring unit, output over current protection, surge protection CERTIFICATION AND STANDARD Grid Regulation: CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 GENERAL DATA - Operating temp. range: -45 ~ 60C, gt;45C derating - Cooling: Natural Convection - Noise: lt; 30 dB - Communication with BMS: RS485, CAN - Weight: 24 kg - Size: 330W x 580H x 232H - Degree Protection: IP 65 - Installation style: Wall-mounted
