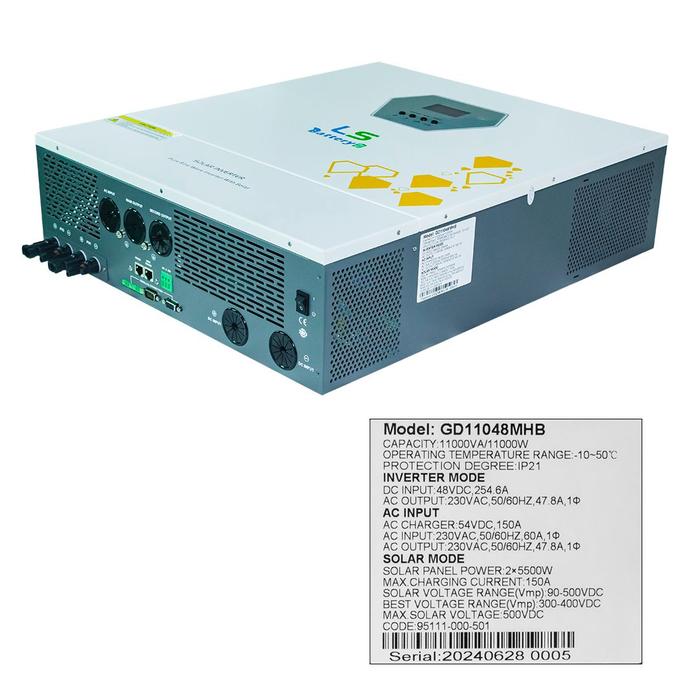

Hybrid Inverter IHB11000 SMT 11kW Offgrid 48V 11.000W MPPT 500VDC High Performance

Hybrid Inverter 48V 11.000W 11KW LS/SMT battery High Performance

Hybrid Inverter 48v 11000 watt,

Bisa berfungsi Off Grid Inverter seperti UPS dengan backup baterai yang lebih flexible.

2 Mode Prioritas

SUB = Solar sebagai energi utama, jika listrik mati maka PLN dan baterai baru digunakan.

SBU=Solar panel utama, jika kurang akan di supply dari baterai, jika panel Surya dan baterai tidak mencukupi baru memakai listrik PLN

SPECIFICATIONS:

Phase: 1-phase in/ 1-phase out

Max. PV input power:Solar Panel : 11.000WP

Rated output power: 11kW

INPUT (DC) 40-60V

Nominal DC Voltage/ Max. DC Voltage: 360Vdc/ 450Vdc

MPPT voltage range: 120Vdc~500Vdc

Number of MPP trackers/ Max. input current: 1/25A

GRID-TIED GRID OUTPUT (AC)

Nominal output voltage: 220/230/240Vac

Output voltage range: 184~264.5Vac or 195.5~253Vac (selectable)

Output frequency range: 47.5~51.5Hz or 49~51Hz (selectable)

Nominal output current: 21.7A

Power factor (cos Φ): >0.99

High Power Capacity: Capable of handling loads up to 11,000W, this inverter is perfect for residential to commercial-scale applications that require stable and reliable power supply.

-----------

Maximum Solar Input: Supporting solar panel input up to 500VDC and a capacity of up to 12,000Wp, this inverter allows you to connect more solar modules to capture the maximum energy from the sun.

-----------

Lithium Battery Support: Fully compatible with lithium batteries, this inverter ensures optimal energy storage with high efficiency and extended battery life. It’s ideal for integration with modern battery systems, especially those based on Lithium (LiFePO4) technology.

----------

Cutting-Edge Technology: Equipped with advanced features like over-voltage, overload, and short-circuit protection, as well as intelligent temperature management, this inverter ensures safer and longer-lasting performance.

---------
