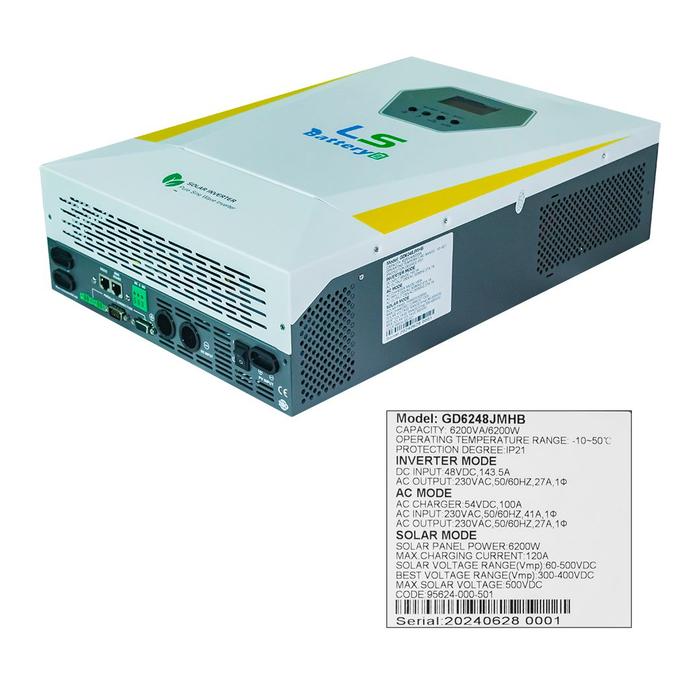

Hybrid Inverter Offgrid SMT LS 48V 6200W MPPT 500VDC High Performance - LS 6200W

Hybrid Inverter 48V 6200W LS - High Performance Solution

Hybrid Inverter 48V 6200W dengan teknologi mutakhir, mampu memberikan kinerja optimal untuk kebutuhan sistem tenaga surya Anda.

Fitur Unggulan:
-Support Batteryless Operation
Dapat beroperasi tanpa baterai, memberikan fleksibilitas dan efisiensi untuk berbagai aplikasi.

-Off-Grid Functionality
Berfungsi sebagai inverter off-grid seperti UPS, memastikan pasokan listrik yang stabil bahkan saat listrik padam.

-Backup Baterai yang Fleksibel
Kompatibel dengan berbagai jenis baterai, memberikan kebebasan memilih solusi penyimpanan energi yang sesuai.

-High Power Output
Kapasitas 6200W memberikan daya yang cukup untuk berbagai kebutuhan rumah tangga maupun komersial.

-Kinerja Andal & Efisien
Dirancang untuk memastikan performa tinggi dalam berbagai kondisi operasi.

Note :
1. Bisa digunakan tanpa baterai atau dengan baterai
2. Jika pakai backup baterai memakai System 48 Volt.
3. MPPT High Performance 99%
4. Maksimal panel surya 500VDC 6200Wp
5. Aplikasi mudah (dilengkapi dengan petunjuk intalasi dan ring terminal )
6. Setting mudah dan Garansi 1 tahun


SPECIFICATIONS:
Phase: 1-phase in/ 1-phase out
Max. PV input power: 6200WP
Rated output power: 6.2kW
INPUT (DC)
Nominal DC Voltage/ Max. DC Voltage: 360Vdc/ 450Vdc
MPPT voltage range: 120Vdc~500Vdc
Number of MPP trackers/ Max. input current: 1/23A
GRID-TIED GRID OUTPUT (AC)
Nominal output voltage: 220/230/240Vac
Output voltage range: 184~264.5Vac or 195.5~253Vac (selectable)
Output frequency range: 47.5~51.5Hz or 49~51Hz (selectable)
Nominal output current: 21.7A
Power factor (cos Φ): >0.99

EFFICIENCY
Max. conversion efficiency (DC/AC): 95%
OFF-GRID & HYBRID OPERATION

AC INPUT
Acceptable input voltage range: 90~280Vac or 170~280Vac
Frequency range: 50Hz/60Hz (auto sensing)

High Power Capacity: Capable of handling loads up to 6200W, this inverter is perfect for residential to commercial-scale applications that require stable and reliable power supply.
-----------
Maximum Solar Input: Supporting solar panel input up to 500VDC and a capacity of up to 6200Wp, this inverter allows you to connect more solar modules to capture the maximum energy from the sun.
-----------
Lithium Battery Support: Fully compatible with lithium batteries, this inverter ensures optimal energy storage with high efficiency and extended battery life. It’s ideal for integration with modern battery systems, especially those based on Lithium (LiFePO4) technology.
----------
Cutting-Edge Technology: Equipped with advanced features like over-voltage, overload, and short-circuit protection, as well as intelligent temperature management, this inverter ensures safer and longer-lasting performance.
---------
