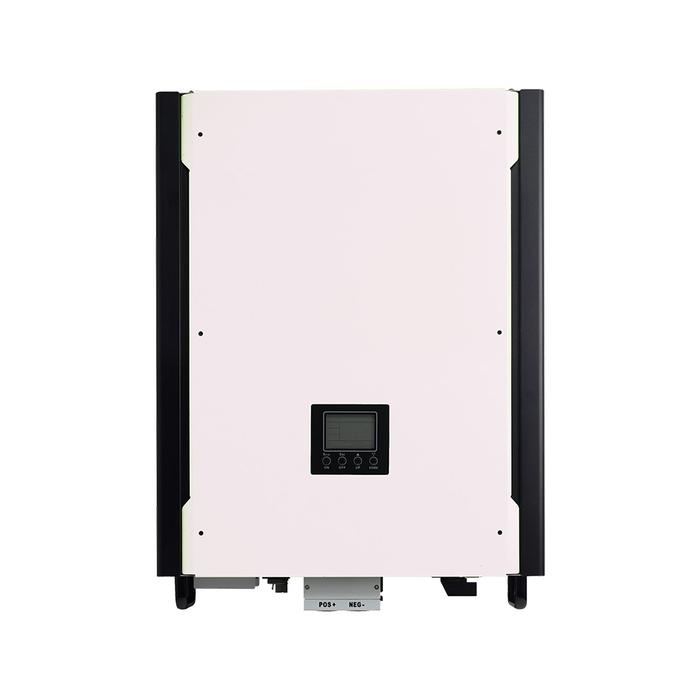

Hybrid Inverter Power Bidirectional 3phase 10KW 48V 10.000W ICAsolar Best Perfoma

Self-consumption and feed-in to the grid
User-adjustable supply priority for PV, battery or grid
User-adjustable battery charging current suits different types of batteries
Multiple operation modes: Grid-tied, off-grid and grid-tie with backup
Built-in timer for various mode of on/off operation
Multiple communication for USB, RS-232, Modbus and SNMP
Monitoring software for real-time status display and control
Parallel operation up to 6 units for up to 60KW

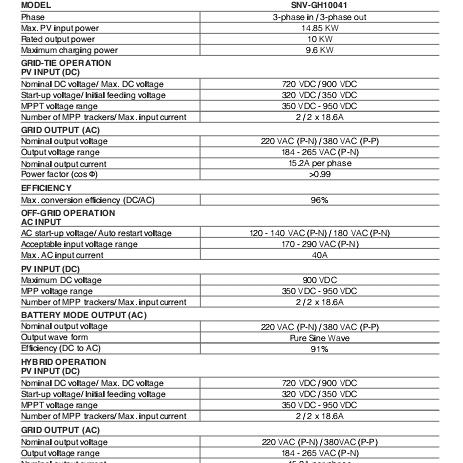

TECHNICAL SPECIFICATIONS:
Phase: 3-phase in/ 3-phase out
Max. PV input power: 14.85KW
Rated output power: 10KW
Maximum charging power: 9.6KW
GRID-TIE OPERATION
INPUT (DC)
Nominal DC Voltage/ Max. DC Voltage: 720 VDC / 900 VDC
Start-up voltage/ Initial feeding voltage: 320 VDC / 350 VDC
MPPT voltage range: 350 VDC - 950 VDC
Number of MPP trackers/ Max. input current: 2 / 2 x 18.6A
GRID OUTPUT (AC)
Nominal output voltage: 220 VAC (P-N) / 380 VAC (P-P)
Output voltage range: 184 - 265 VAC (P-N)
Nominal output current: 15.2A per phase
Power factor (cos Φ): >0.99
EFFICIENCY
Max. conversion efficiency (DC/AC): 96%
OFF-GRID OPERATION
AC INPUT
AC start-up voltage/ Auto restart voltage: 120 - 140 VAC (P-N) / 180 VAC (P-N)
Acceptable input voltage range: 170 - 290 VAC (P-N)
Max. AC input current: 40A
PV INPUT (DC)
Max. DC Voltage: 900 VDC
MPPT voltage range: 350 VDC - 950 VDC
Number of MPP trackers/ Max. input current: 2 / 2 x 18.6A
BATTERY MODE OUTPUT(AC)
Nominal output voltage: 220 VAC (P-N) / 380 VAC (P-P)
Output wave form: Pure Sine Wave
Efficiency (DC to AC): 91%
HYBRID OPERATION
PV INPUT
Nominal DC Voltage/ Max. DC Voltage: 720 VDC / 900 VDC
Start-up voltage/ Initial feeding voltage: 320 VDC / 350 VDC
MPPT voltage range: 350 VDC - 950 VDC
Number of MPP trackers/ Max. input current: 2 / 2 x 18.6A
GRID OUTPUT(AC)
Nominal output voltage: 220 VAC (P-N) / 380VAC (P-P)
Output voltage range: 184 - 265 VAC (P-N)
Nominal output current: 15.2A per phase
BATTERY
Nominal DC voltage: 48VDC
Max. charging current: 10A - 200A
