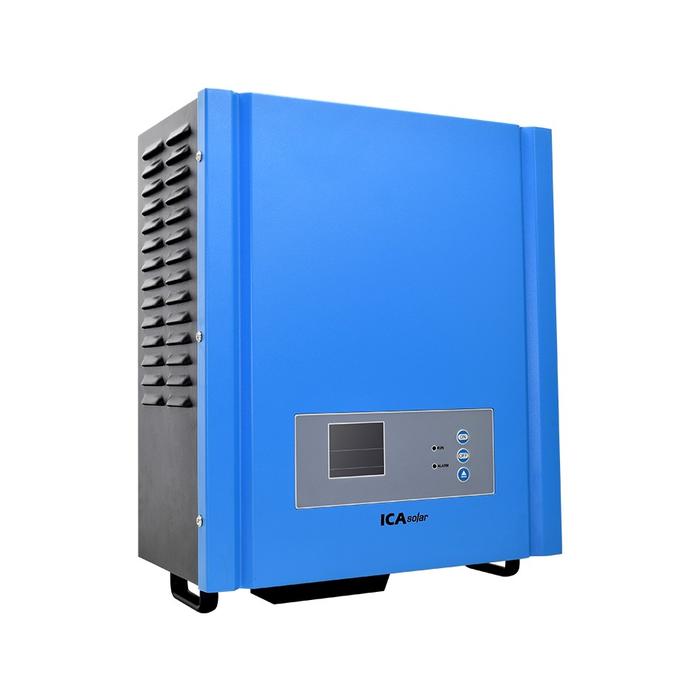

Hybrid Inverter PSW ISolar SNV-GFW2048 2kW/48V 2000watt max PV 2800Wp

TECHNICAL SPECIFICATIONS: PV INPUT Max. input voltage (Voc): 150Vdc Optimum operating voltage (Vmp): 65~120Vdc Max. charging current: 50A Recommended PV configuration: 2800W AC INPUT AC input range (bypass mode): 0~132Vac/0~264Vac (high-end limit) Rated input voltage: 100Vac/110Vac/115Vac/120Vac or 200Vac/220Vac/230Vac/240Vac±25% (2500W is only for 110Vac; 3000W is only for 220Vac) Rated input frequency: 50Hz/60Hz±5%/10%/15% (settable) Max. charging current: 20A INVERTER OUTPUT Output voltage: 100Vac/110Vac/115Vac/120Vac±2% or 200Vac/220Vac/230Vac/240Vac±2% (settable) (2500W is only for 110Vac; 3000W is only for 220Vac) Rated output power: 2000W Power factor: 1 Rated output frequency: 50Hz/60Hz±1% (inverter mode) Waveform: Sinusoidal Max. efficiency (resistive load): ≥85% Sleep mode: Settable ( lt;3% load) access in ≤2min Output voltage harmonic: ≤3% (linear load) BATTERIES Battery voltage: 48Vdc Battery type: VRLA battery (default) Charging current: 5~50A (settable) DOD: Settable: 42~52.8Vdc; Default: 48Vdc EOD: Settable: 38.4~48Vdc; Default: 42Vdc (default) Equalizing charge voltage: Settable: 55.2~60Vdc; Default: 56.4Vdc Floating charge voltage: Settable: 52.8~55.2Vdc; Default: 54.5Vdc Restoration point of overvoltage: 62Vdc Load adaptation: Inductive load: ≤30%; capacitive load: ≤50%; resistive load: ≤100% Protection: Output overload-short-circuit-overdischarge-overcharge-battery reverse polarity-PV reverse polarity Lightning protection: Class III Communication: RS232/USB/RS485; SNMP/Wi-Fi/GPRS (optional) Standards: IEC62040, IEC/EN 61000 IP rating: IP21 Display: LCD amp; LED Operating temperature: 0°~40°C Relative humidity: ≤93% Noise: lt;50dB Dimensions (W*L*D) in mm: 365.5 x 442 x 210 Package dimensions (W*L*D) in mm: 455 x 520 x 283 Net weight: 30.4kg Gross weight: 31.9kg
