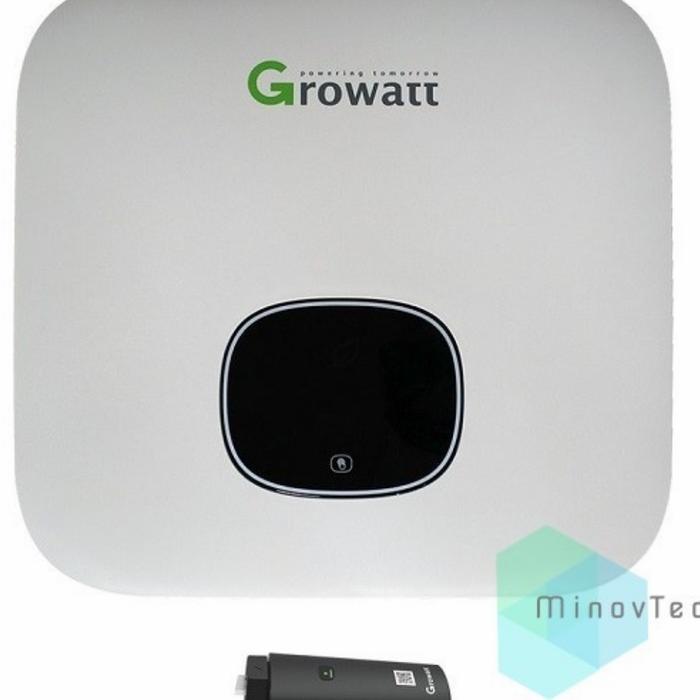

Inverter Growatt 2500TL-X 2500Watt Shine Wifi Inverter Ongrid 2.5KW

PAKET SUDAH INCLUDE SHINE WIFI-X GARANSI RESMI 3TAHUN Model: MIN 2500TL-X INPUT DATA (DC) Max. recommended PV power (for module STC): 3500W Max. DC voltage: 500V Start voltage: 100V Nominal voltage: 360V MPP voltage range: 80V-500V No. of MPP trackers: 2 No. of PV strings per MPP tracker: 1 Max. input current per MPP tracker: 12.5A Max. short-circuit current per MPP tracker: 16A OUTPUT DATA (AC) AC nominal power: 2500W Max. AC apparent power: 2500VA Nominal AC voltage（range*): 230V (180-280V) AC grid frequency（range*）: 50/60 Hz (45-55Hz/55-65 Hz) Max. output current: 11.3A Adjustable power factor: 0.8leading…0.8lagging THDi: lt;3% AC grid connection type: Single phase EFFICIENCY Max.efficiency: 98.2% European efficiency: 97.1% MPPT efficiency: 99.9% PROTECTION DEVICES DC reverse polarity protection: yes DC switch: yes AC/DC surge protection: Type II / Type III Insulation resistance monitoring: yes AC short-circuit protection: yes Ground fault monitoring: yes Grid monitoring: yes Anti-islanding protection: yes Residual-current monitoring unit: yes AFCI protection: Optional GENERAL DATA Dimensions (W / H / D): 375/350/160mm Weight: 10.8kg Operating temperature range: –25°C ... +60°C Noise emission (typical): ≤35 dB(A) Nighttime power consumption: lt; 1W Topology: Transformerless Cooling: Natural convection Protection degree: IP65 Relative humidity: 0-100% Altitude: 4000m DC connection: H4/MC4(Optional) AC connection: Connector Display: OLED+LED/WIFI+APP Interfaces: RS485 / USB/Wi-Fi/GPRS/ RF/LAN: Yes/Yes/Optional/Optional/Optional /Optional
