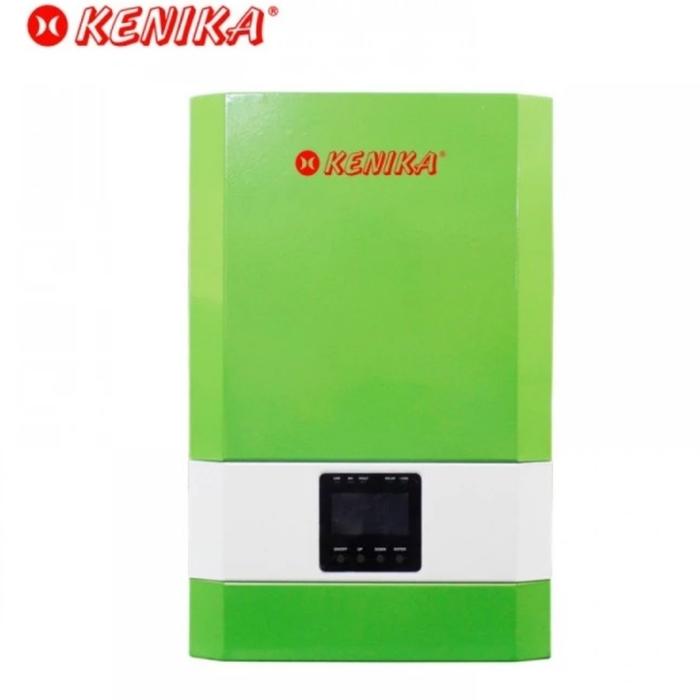

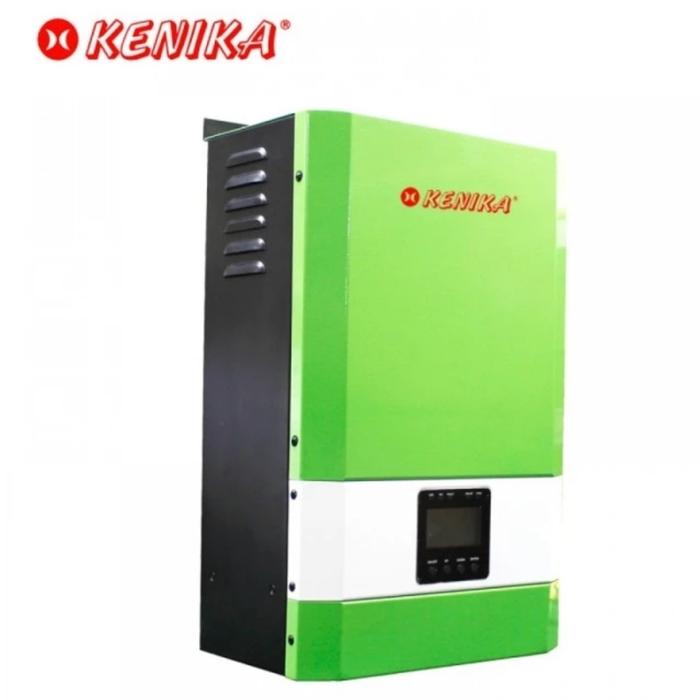

Inverter Hybrid Low Frequency Kenika 12V 1000W PSW Toroidal

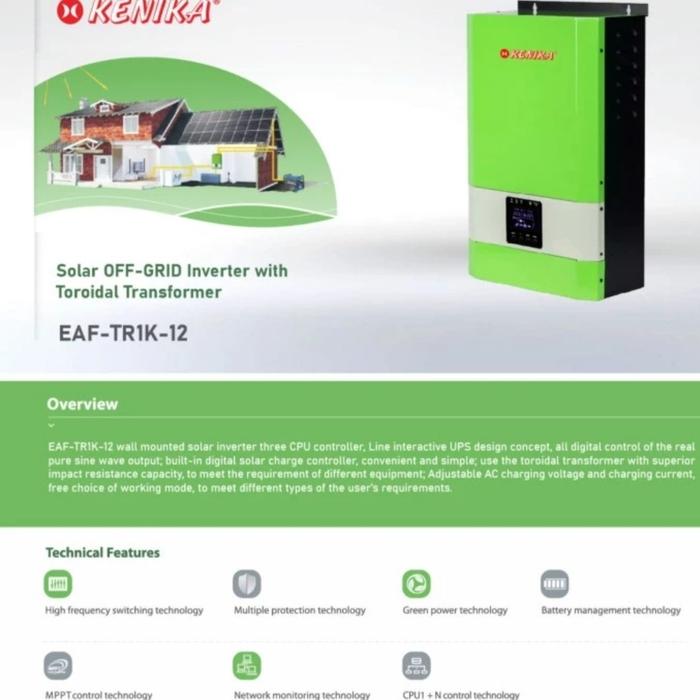

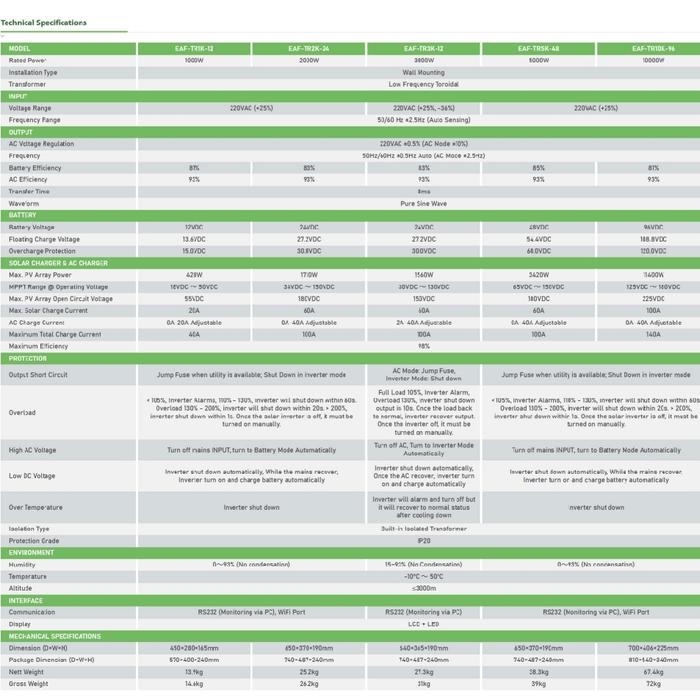

Hybrid EAF-TR1K-12 ini menggunakan trafo toroidal. Sistem ini tidak terkoneksi dengan jaringan listrik yang ada. Karena bersifat mandiri, maka diperlukan baterai untuk menyimpan tenaga listrik yang dihasilkan oleh PV. untuk Versi 24v 2000w 24v 3000w 48v 5000w bisa klik Coba cek ini, deh: #34;Inverter Hybrid Offgrid Low Frequency Toroid 1Kw 2Kw 3Kw 5kw 10Kw - https://tokopedia.link/bVq71rCywsb Specifications: MODEL EAF-TR1K-12 Rated Power: 1000W Installation Type: Wall Mounting Transformer: Low Frequency Toroidal INPUT Voltage Range: 220VAC (+25%, -36%) Frequency Range: 50/60Hz ±2.5Hz (Auto Sensing) OUTPUT AC Voltage Regulation: 220VAC ±0.5% (AC Mode ±10%) Frequency: 50Hz/60Hz ±0.5Hz Auto (AC Mode ±2.5Hz) Power Factor: 1.0 Surge Power: 3000W Capable of Starting Electric Motor: 1HP Battery Efficiency: 81% AC Efficiency: 93% Transfer Time: 8ms Waveform: Pure Sine Wave BATTERY Battery Voltage: 12VDC Floating Charge Voltage: 13.6VDC Overcharge Protection: 15.0VDC SOLAR CHARGER amp; AC CHARGER Max. PV Array Power: 390W MPPT Range @ Operating Voltage: 15VDC ~ 130VDC Max. PV Array Open Circuit Voltage: 150VDC Max. Solar Charge Current: 30A Default, 10A/20A (Optional) AC Charge Current: 1A-20A Adjustable Maximum Charge Current: 50A Maximum Efficiency: 98% PROTECTION Battery Reversal: Optional Output Short Circuit: AC Mode: Jump Fuse, Inverter Mode: Shut Down Overload: Full Load 105%, Inverter Alarm, Overload 130%, Inverter shut down output in 10s. Once the load back to normal, inverter recover output. Once the inverter off, it must be turned on manually. High AC Voltage: Turn off AC, Turn to Inverter Mode Automatically Low DC Voltage: Inverter shut down automatically, Once the AC recover, Inverter turn on and charge automatically Over Temperature: Inverter will alarm and turn off but it will recover to normal status after cooling down Isolation Type: Built-in isolated Transformer Protection Grade: IP20
