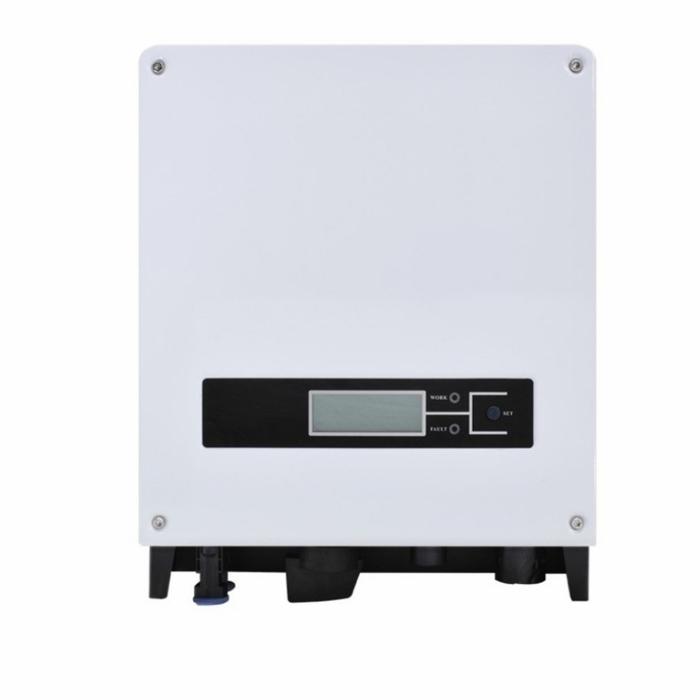

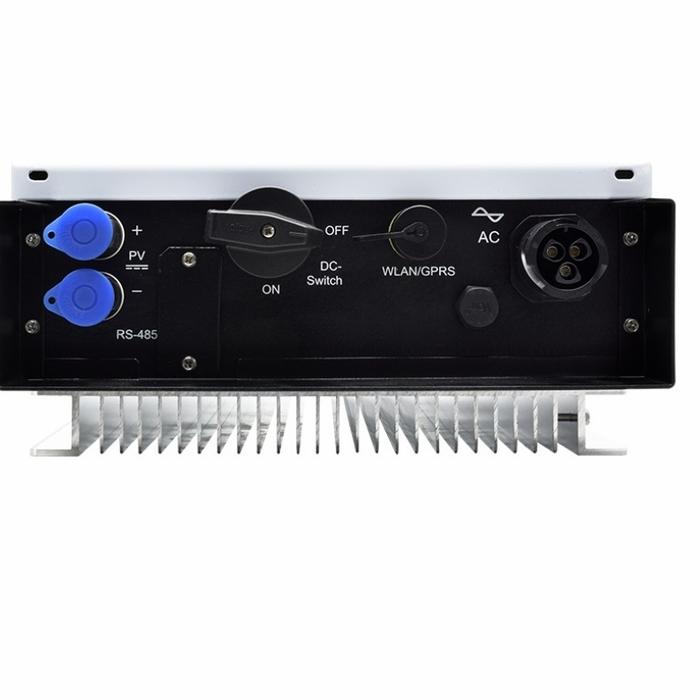

Inverter ISolar PSW SNV-GT3022SM Ongrid 3000W Inverter GTI 3KW

Penggunaan inverter On-Grid untuk mengubah arus DC dari panel surya menjadi arus AC. Inverter ini terangkai dalam sistem On-Grid dimana area tersebut harus terhubung dengan jaringan PLN yang ada, dan tanpa menggunaan baterai/aki. Features Highlights: Max. PV Voltage up to 500V Single MPPT High efficiency up to 97.5% Smaller and lighter IP65 Protection Easy installation TECHNICAL SPECIFICATIONS: INPUT (DC) Max. recomended PV power: 3.9 kW Max. DC voltage: 500Vdc MPPT voltage range: 100~490Vdc Nominal DC voltage: 380Vdc Full load MPPT voltage range: 240~400Vdc Min./start DC voltage: 120/150Vdc Number of MPPT trackers: 1 Strings per MPPT tracker: 1 Max. input current per MPPT tracker: 13A OUTPUT (AC) Max. AC output power: 3 kW Nominal AC voltage: 230Vac AC voltage range: 230Vac±20% Nominal AC grid frequency: 50/60Hz AC grid frequency range: 50/60Hz (±5Hz) Max. output current: 14A Power factor (cos Φ): 1 THDI: lt;3% AC connection: LN+PE Topology: Transformerless EFFICIENCY Max efficiency: 97.6% PROTECTION DEVICE AC leakage current fault protection: Yes Ground fault protection: Yes Anti-islanding protection: Yes DC overvoltage protection: Yes DC amp; AC surge protection: Yes DC reverse-polarity protection: Yes PHYSICAL Dimension (W*L*D) in mm: 264 x 326 x 127 Weight: 8.6kg ENVIRONMENT Operating temperature range: –25°C~+60°C Noise emission (typical): ≤25dB Cooling type: Natural cooling Protection rating: IP65 FEATURES LCD display: Yes Interfaces: RS485 Optional: WiFi Plug/GPRS Plug *Specifications subject to change without prior notice
