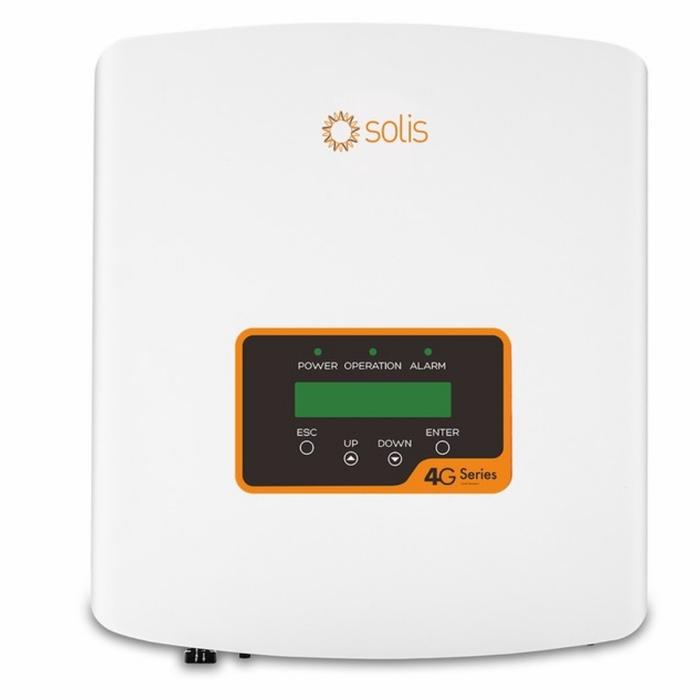

Inverter Solis1P5K-4G GTI 5000W PSW Inverter Shine Wifi Ongrid 5KW

Deskripsi On Grid Inverter Solis-1P5K-4G 5000 Watt 5000W Flexible and Friendly Integrated digital outputs for intelligent household consumption management o High Power Yield o Max. efficiency 98.1% o 2 MPPT, wide MPPT operating range from 100V to 500V High Reliability o IP65, visually pleasing for domestic environment o Natural convection Flexible and Friendly o Integrated digital outputs for intelligent household consumption management o RS485, WiFi/GPRS monitoring availableiphone and android app available Spesifikasi INPUT o Max. PV input : 5800W o Max. PV voltage : 600V o Max. number of PV strings per MPPT (DC1/DC2) : 2/2 o Max. current for input connector : 22(11+11)A OUTPUT o Nominal AC output power : 5000W o Max. AC output current : 121.7A o Nominal AC voltage : 160-285Vac o Nominal grid frequency : 50/60Hz o THD : o Power factor : 0.8...1...0.8 PROTECTION o Anti-islanding protection o AC short circuit protection o Leakage current o DC switch (Optional) o DC Fuse o Overvoltage protection SYSTEM o Max. efficiency : 98,1% o Isolation method : Transformerless o Ingress protection rating : IP65 o Night power consuption : 1W (Night) o Operating ambient temperature range : -25C~60C o Allowable relative humidity range : 0~100 % o Cooling method : Natural convection o Display : LCD,2x20 Z o Communication : 4 pins RS485 connector o DC connection type : MC-4mateable o AC connection type : IP67rated plug o Certification : EN50438, G83/2, G59/3, AS4777.2:2015, VDE0126-1-1, IEC61727, VDE N4105 : IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-3 MECHANICAL DATA o Dimensions (W x H x D) : 310W*543H*160D (mm) o Mounting method o Weight : 11.5kg
