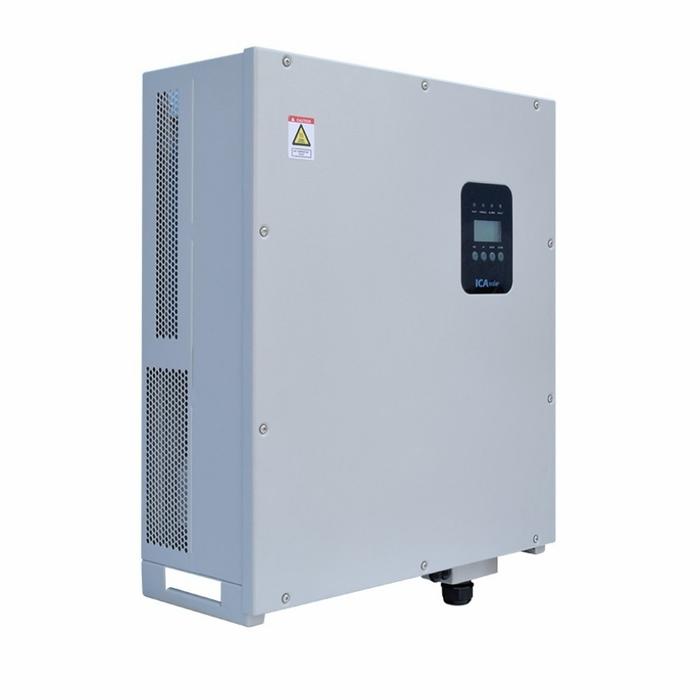

ISolar GT1532DM Ongrid 15.000W Inverter GTI 15KW 3Phase

Penggunaan inverter On-Grid untuk mengubah arus DC dari panel surya menjadi arus AC. Inverter ini terangkai dalam sistem On-Grid dimana area tersebut harus terhubung dengan jaringan PLN yang ada, dan tanpa menggunaan baterai/aki. Features Highlights: Max. PV Voltage up to 1000V Double MPPT High efficiency up to 98.0% Smaller and lighter IP65 Protection Easy installation Reactive power controller Digital controller TECHNICAL SPECIFICATIONS: INPUT (DC) Max. recomended PV power: 19.5 kW Max. DC voltage: 1000Vdc MPPT voltage range: 250~950Vdc Nominal DC voltage: 620Vdc Full load MPPT voltage range: 480~800Vdc Min./start DC voltage: 200/250Vdc Number of MPPT trackers: 2 Strings per MPPT tracker: 2 Max. input current per MPPT tracker: 21A/21A OUTPUT (AC) Nominal AC output power: 15 kW Max. AC output power: 16 kW Nominal AC voltage: 400Vac AC voltage range: 400Vac±20% Nominal AC grid frequency: 50/60Hz AC grid frequency range: 50/60Hz (±5Hz) Max. output current: 24A Power factor (cos Φ): Lagging 0.8 - leading 0.8 THDI: lt;3% AC connection: 3W+N+PE/3W+PE Topology: Transformerless EFFICIENCY Max efficiency: 98.0% PROTECTION DEVICE AC leakage current fault protection: Yes Ground fault protection: Yes Anti-islanding protection: Yes DC overvoltage protection: Yes DC amp; AC surge protection: Yes DC reverse-polarity protection: Yes PHYSICAL Dimension (W*L*D) in mm: 553 x 715 x 228 Weight: 39kg ENVIRONMENT Operating temperature range: –25°C~+60°C Noise emission (typical): ≤40dB Cooling type: Natural cooling Protection rating: IP65 FEATURES LCD display: Yes Interfaces: RS485 Optional: WiFi Plug/GPRS Plug *Specifications subject to change without prior notice
