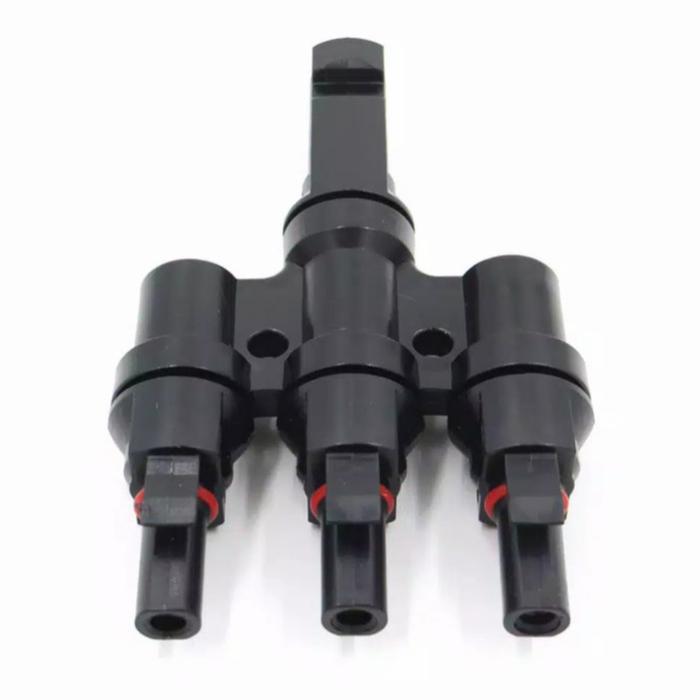

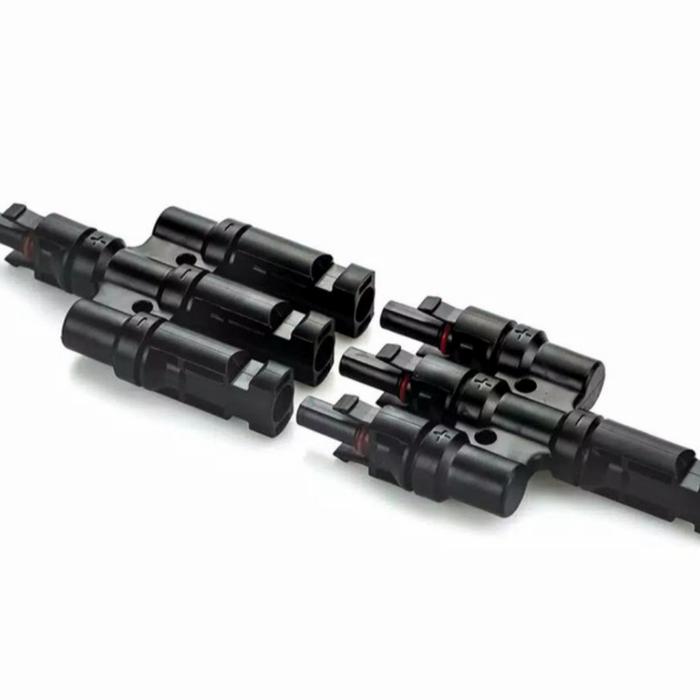

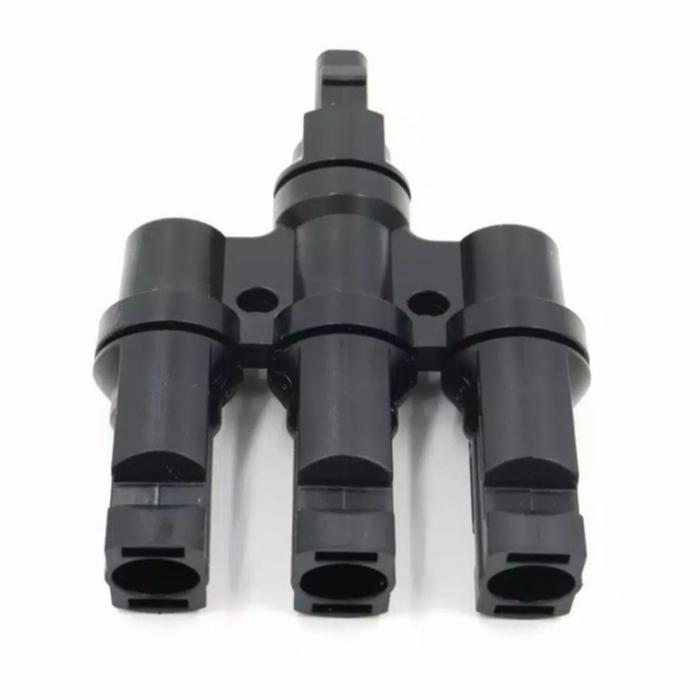

konektor mc4 3 in 1 konector MC4 Panel Surya

Konektor MC4 cabang 1 ke 3 ( 3 in 1 ) ( 1 ke 3) Harga untuk 1 pasang MC4 cabang 1 ke 3: 1 buah 1 male ke 3 female 1 buah 1 female ke 3 male Product Name: MC4Y4 Four-way connector (MC4 compatible interface) Specifications Model: BY-4Y Operating Current: 20A (4mm2), 30A (6mm2) Withstand Voltage: DC1000V Contact resistance: lt;= 0.5m Insulation resistance: gt; 500M Suitable single cable section: 1.5mm2--6mm2 Ambient temperature: -40 ~ + 105 Protection: IP67 Safety class: Insertion Force: 50N withdrawal force: 50N Insulation material: PPO, black Contacts: copper cn, nickel sn flammability rating: UL94-VO Weight: about 0.125Kg
