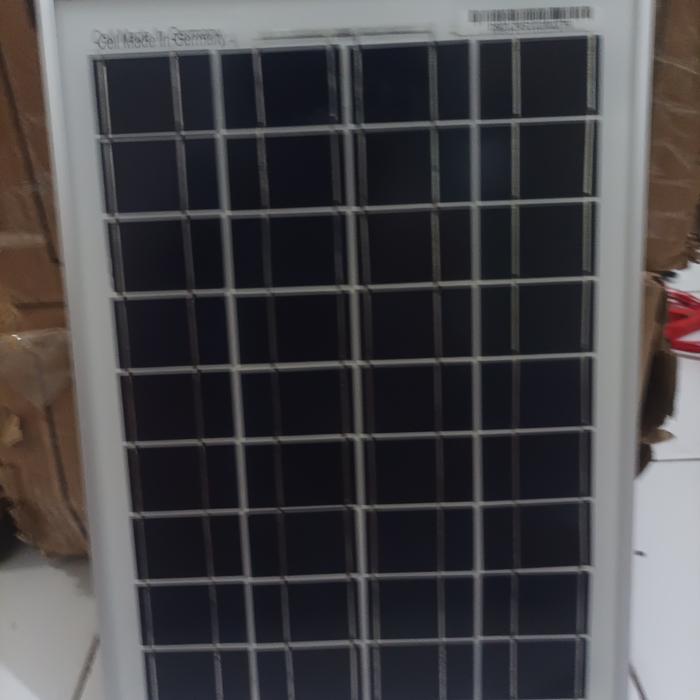

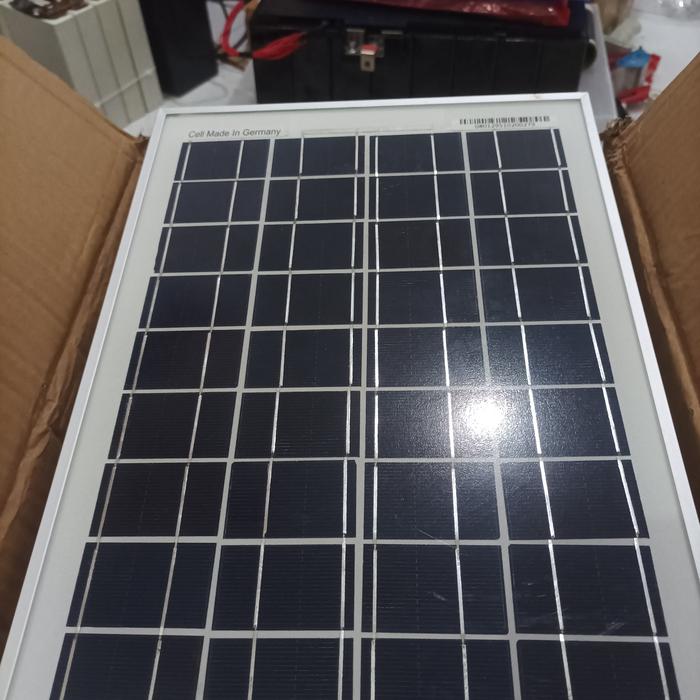

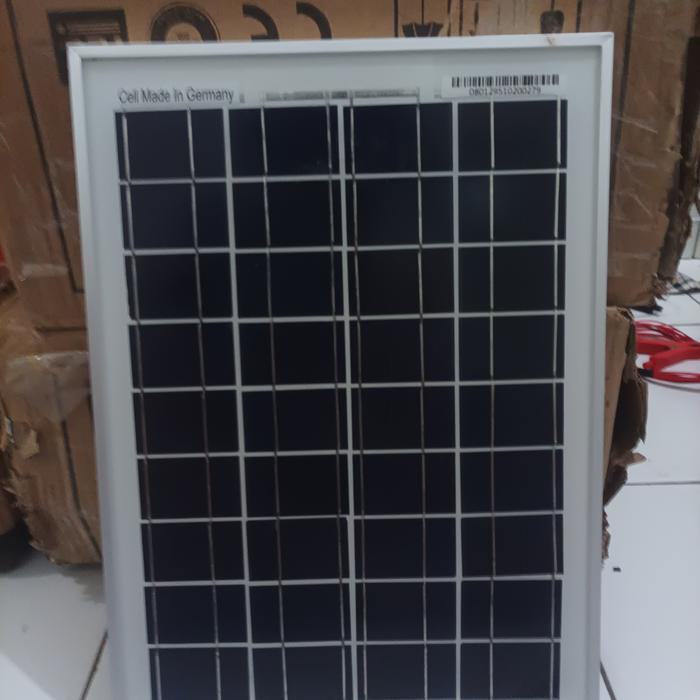

Panel Surya 10wp Policristaline Cell Made in Germany

Model type:GH10P-36
Rated Maximum Power(Pm): 10w
Tolerance :0~+5
Voltage at Pmax(Vmp): 18.3V
Current at Pmax(Imp):0.55A
Open-Circuit Voltage (Voc) : 22.5V
Short-Circuit Current (Isc) :0.58A
Normal Operating Cell Temp (NOCT): 472'"
Maximum System voltage : 1000VDC
Maximum System Fuse Rating : 10A
Operating Temperature : -40'" to +85'"
Application Class :Class A
Cell Technology :Poly-Si
Weight : 0.93KG
Dimension (mm):254*354*17mm
note :
tidak termasuk kabel harus pasang sendiri

Untuk menghindari kerusakan panel surya pada saat pengiriman, pembelian solar panel WAJIB membeli juga tambahan packing kayu/triplek yang ada di etalase kami. Berikut kami lampirkan linknya. Terimakasih
