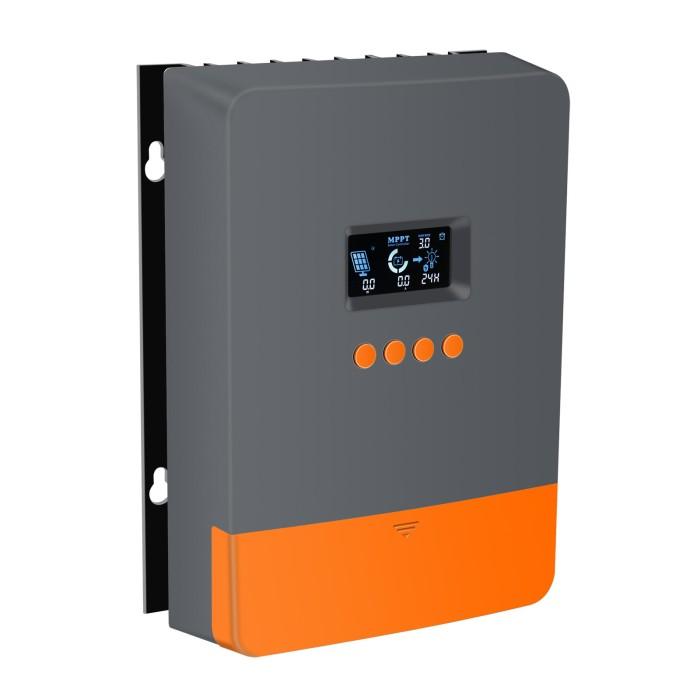

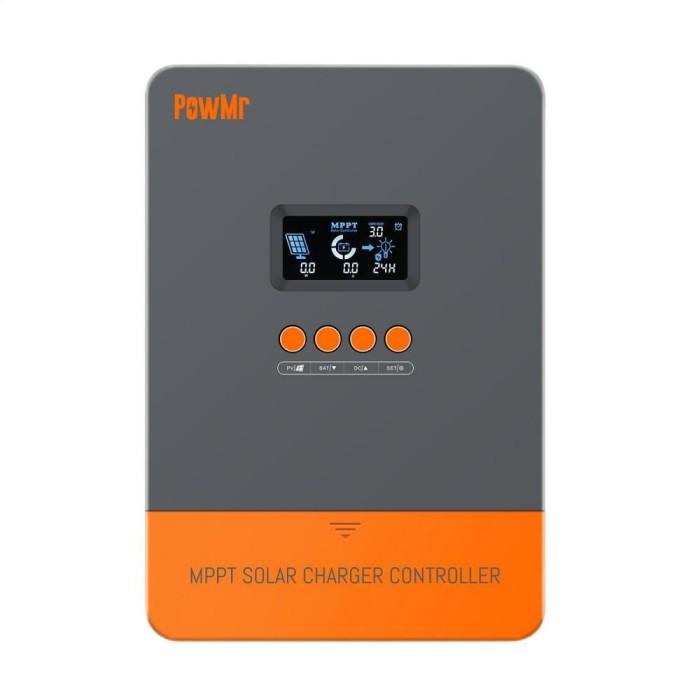

PoWmr Pro 60A Solar Charge Controller MPPT 12V 24V 36V 48V 60A Orang
Models: POW-M60-PRO
Charging mode: MPPT Maximum power point tracking automatically
Charging 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
System type: DC12V/24V/36V/48V Recognition automatically
12V system (DC9V-DC15V)
24V system (DC18V-DC29V)
36V system (DC30V-DC39V)
48V system (DC40V〜DC60V)
The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.)
12V system (720W)
24V system (1440W)
36V system (2100W)
48V system (2800W)
Soft start time Dynamic response and recovery time >98.1 % (Voc is 1.5 or 2 times than battery, then it's the best efficiency)
PV utilization >99%
Input specification
VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.)
12V system (DC20V〜DC80V)
24V system (DC37V-DC105V)
36V system (DC50V〜DC160V)
48V system (DC72V〜DC160V)
The maximum PV input voltage (Voc)
DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)
Output specification
Selectable battery type(default is Sealed)
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage
Refer to Batteries charging reference
Floating Charging Voltage
Refer to Batteries charging reference
Overcharging protection voltage
12V system (15V)
24V system (30V)
36V system (45V)
48V system (60V)
Rated output current 60A
Temperature Coefficient ±0.02%/ °C
Automatic temperature compensation 14.2V-(Max temperature-25 °C)*0.3
Output voltage ripple-peak 100mv
Output voltage accuracy <±1%
Input Anti-intrusion protection yes
Temperature Protection 75°C
Temperature increased protection
Output power will reduce when it's more than 70 °C
Output power will be normal when it's less than 55 °C
