Solar Charge Controler SCC PWM EPEVER VS6024AU PWM 60A 12V/24V

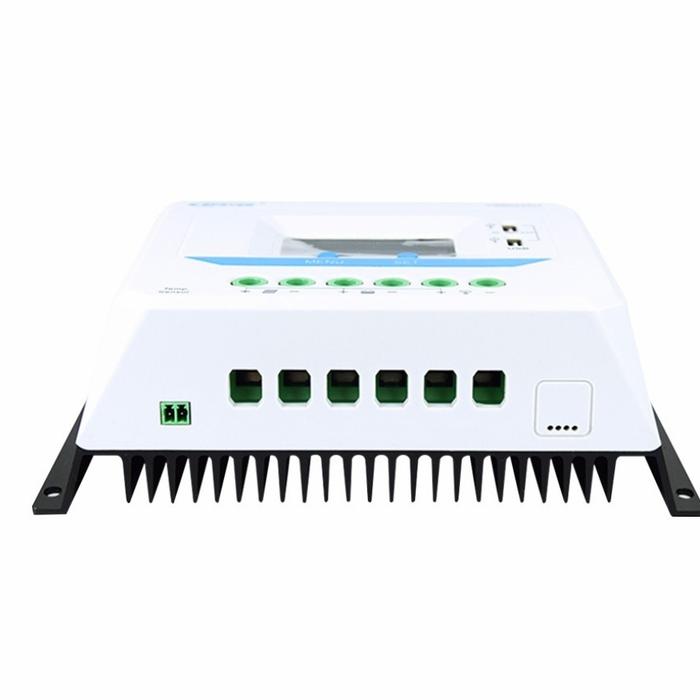

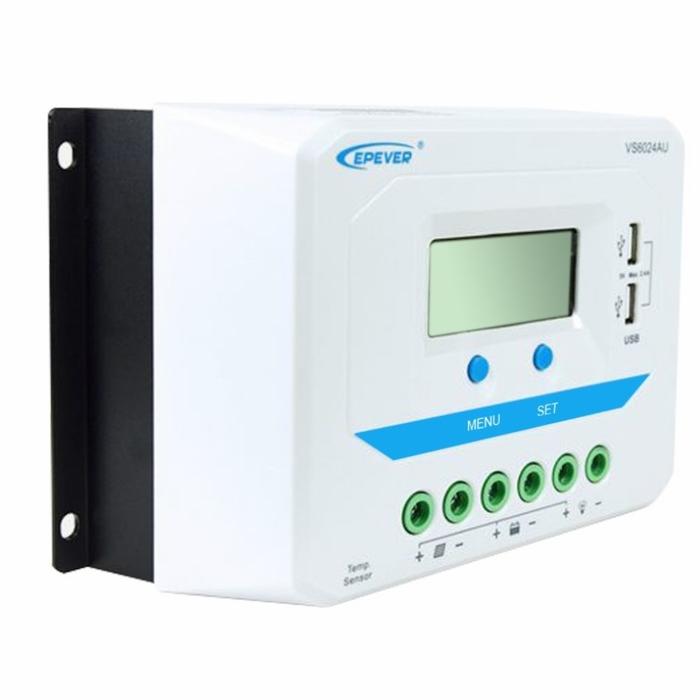

 Charge Controllers Home Charge Controllers EPEVER VS6024AU PWM 60A Subcategory Semua 24-Jam Accessories Lampu Jalan Charge Controllers EPEVER VS6024AU PWM 60A  Product Code: BF22206001000 Category: Charge Controllers Min. Qty: 1 Silahan Hubungi Customer Service Kami Supaya Bisa Melakukan Transaksi Description The ViewStar AU controller is a PWM charge controller with built in LCD display that adopts the most advanced digital technique. The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc. Features: Adopt high quality components of ST,IR and Infineon, make sure product using lifespan Terminals have UL and VDE certification, the product is more safer and more reliable Controller can work continuously at full load within the environment temperature range from -25 to 55˚C 3-Stage intelligent PWM charging: Bulk, Boost/Equalize, Float Support 3 charging options: Sealed, Gel, and Flooded LCD display design, dynamically displaying device’s operating data and working condition Double USB design, the power supply charge for electronic equipment With humanized button settings, operation will be more comfortable and convenient Multiple load control modes Energy statistics function Battery temperature compensation function Extensive Electronic protection TECHNICAL SPECIFICATIONS: Nominal system voltage: 12/24 VDC Auto Battery input voltage range: 9V～32V Rated charge/discharge current: 60A@55˚C Max. PV open circuit voltage: 50V Equalize charging voltage: Sealed:14.6V/ Gel: No/ Flooded:14.8V Self-consumption: ≤9.2mA/12V;≤11.7mA/24V; ≤14.5mA/36V;≤17mA/48V Temperature compensation coefficient: -3mV/˚C/2V (25˚C) Working temperature: -25˚C～+55˚C (Product can work continuously at full load) Enclosure: IP30 Overall dimension: 214×128.7×72.2mm Mounting dimension: 205x100mm Mounting hole size: Φ5mm Terminals: 25mm²/4AWG Weight: 1.02Kg
