Solar Flexible Energy Power Panel Surya Monocristaline 85Wp 115Wp 150Wp DFSP-85M & DFSF-150M High Performance Flexible Solar Cell 1470x660mm - 85Wp

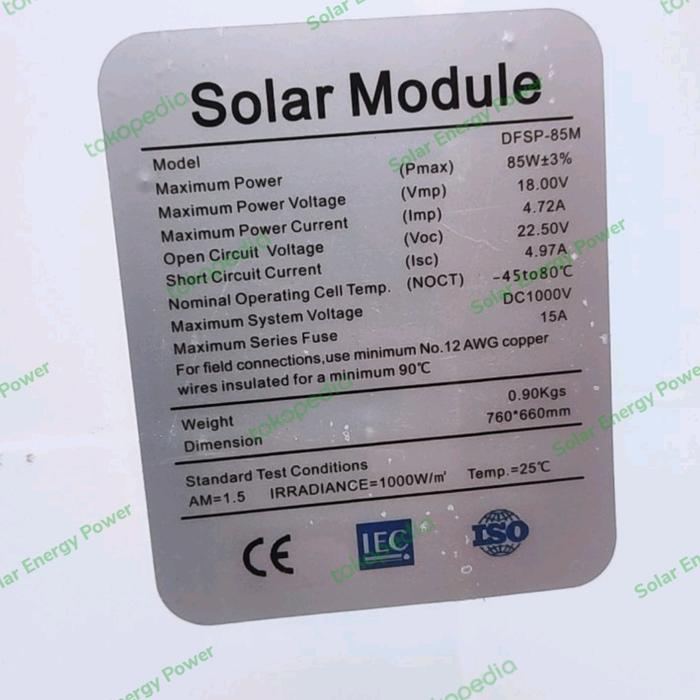

Panel Surya Flexible 85Wp 115Wp 150Wp Harga sesuai Variasi WP Spesifikasi ada di gambar no 3 --------- Monocristaline Flexible Solar Cell 85 WP Model : DFSP-85M Maximum Power (Pmax) : 85W±3% Maximum Power Voltage (Vmp) : 18V Maximum Power Current (Imp) : 4.72A Open Circuit Voltage (VOC) : 22.50V Short Circuit Current (Isc) : 4.97A Nominal Operating Cell Temp (NOCT) : -45°to 80°C Maximum System Voltage : DC1000V Maximum Series Fuse : 15A Weight : - Solar cell * Model DFSF 150m *Max power (p max):150WP *Toleransi: 3% *Max power voltage (vmp):18v *Max power current (imp) :8,33A *Oven circuit Voltage (VOC) :22,5V *short circuit current (ISC):8,58 *nominal overating cell temp (NOCT) :45 to 80°C *Max sistem voltage: DC 1000v *Max series fuse :9A *Weight :- *Dimension : 1470x660x1,2mm *Standar tes condition: Am=1,5 irradiance=1000w/m² temp=25°c connector: MC4 Dimesi : 760*660mm untuk 85Wp Dimensi : 1470x660mm untuk 150Wp Ringan dan High Performance
