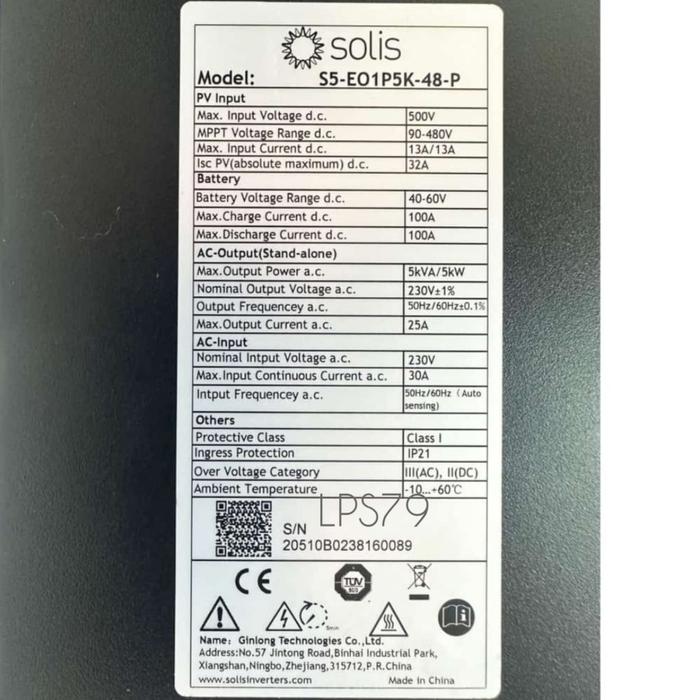

S5-EO1P5K-48-P 5KW

Parallel capability 6 units

Battery
Rated battery voltage : 48 V
Battery type : Li-ion / Lead-acid
Max. charge / discharge current : 100 A
Communication : CAN

Inverter Output
Rated output power 5 kVA / 5 kW
Rated output voltage 230 V ± 1%
Rated frequency 50 Hz / 60 Hz ± 0.1%
Surge capacity 10 kVA
Output voltage waveform Pure sine wave
Transfer time 10 ms typical, 20 ms Max
THDv (@linear load) Peak efficiency (PV-AC) 96.6%

Solar Charger
Solar charger type MPPT
Recommended max. PV power 5.5 kW
Max. input voltage 500 V
MPPT voltage range 90-480 V
MPPT number/Max. input strings number 1/2
Max. input current per MPPT 27 A
Max. solar charge current 100 A

AC Charger
Rated input voltage 230 V
Selectable voltage range 90-280 V
AC frequency range 50 Hz / 60 Hz (Auto sensing)
Max. AC charge current 80 A

Protection
Output over voltage protection Yes
Output over current protection Yes
Short circuit protection Yes
Surge protection Yes
Temperature protection Yes
Integrated AFCI Yes (1)

General Data
Dimensions (W*H*D) 335*450*160 mm
Weight - kg
Relative humidity 5% - 95% (Non-condensing)
Operating ambient temperature range -10 ~ +60°C
Storage temperature range -25 ~ +60°C
Ingress protection IP21
Max. operation altitude 2000 m
Safety standard IEC 62109, IEC 61000, 55011, RED

Features
DC connection Terminal connectors
AC connection Terminal connectors
Display LCD
Communication CAN, BMS, Dry-contact, Bluetooth, Optional: Wi-Fi
