DC Fuse/PV Fuse adalah salah satu bagian terpenting dalam installasi PV System untuk memberikan perlindungan menyeluruh terhadap kelebihan beban atau korsleting tingkat rendah. Sebagai proteksi didalam Combiner Box/PV Junction Box dan bekerja ketika ada arus mengalir sehingga dapat melindungi peralatan dan kabel dari panas yang berlebihan (overheating).

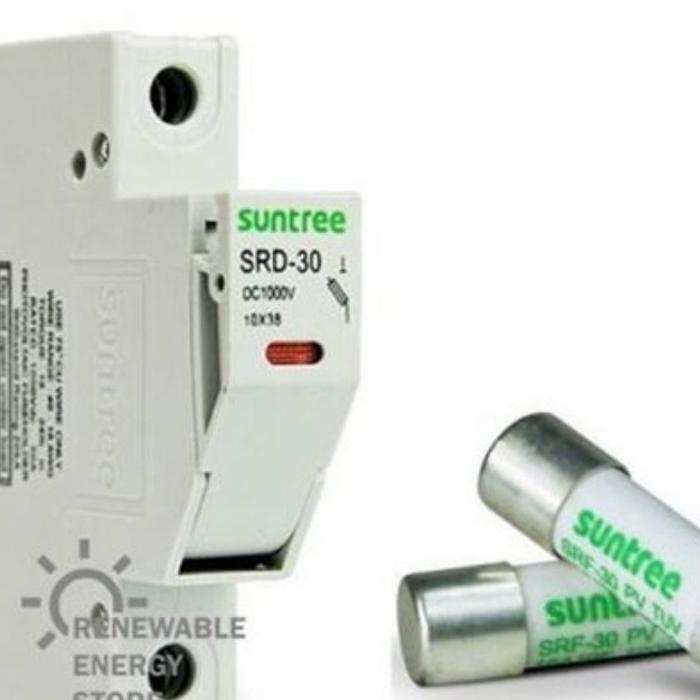

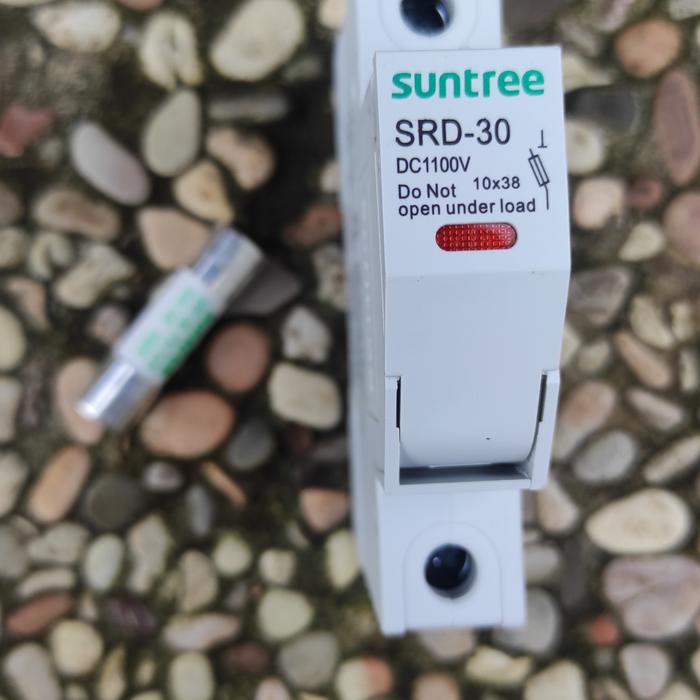

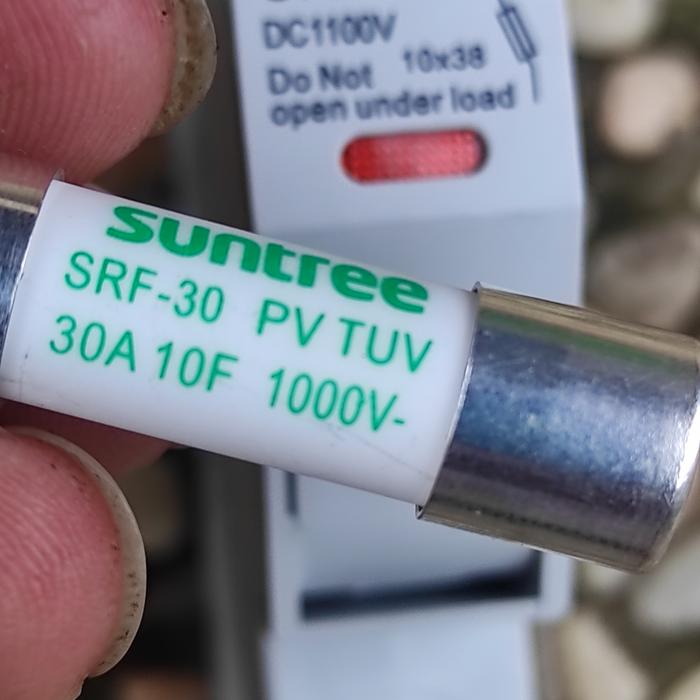

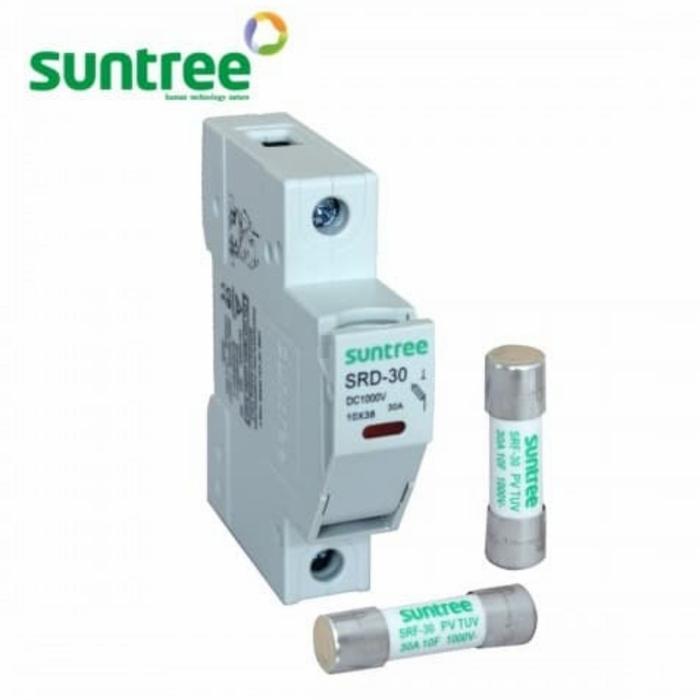

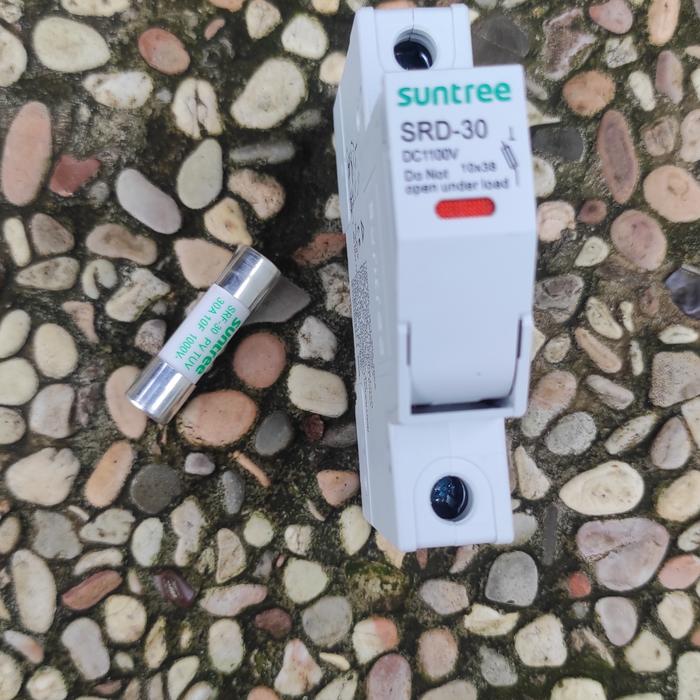

DC Fuse PV SUNTREE SRD-30 1100V 30A
• Usage: Low Voltage, Solar PV
• Safety Standards: IEC•Type: Thermal DC fuse
• Certification:TVU、CE、IEC
• Short-circuit breaking capacity 33KA
• Plug Design, quick change fusible core Improve efficiency
• Indicator window design, signal of whether the fused core is fused or not (the light is on when it is blown, it is not on)
• PA66 flame retardant material
• Overload protection and short circuit protection
• Busbar design, reliable and beautiful wiring
• Photovoltaic set of strings all need to be equipped with DC fuse protection circuit to remove faults
1.PV system dc fuse 2.Rared Voltage:1000VDC 3.High quality CE amp;TUV certificate 4.Professional DC-FUSE Manufacturer Spesifikasi : Model : SRD-30-30A Type : DC-Fuse Fuse Holder : SRD-30 Rated Voltage : 1000 VDC Pole : 1P Rated Current : 30A Breaking Capacity : 33kA Safety Standard : IEC 60269-6, GB/T 13539.6 and UL 2579 Certification : TUV Installation : Stand ready for DIN rail mounting Size Fuse (mm) : 10 x 38 Weight (gr) : 500
