Description

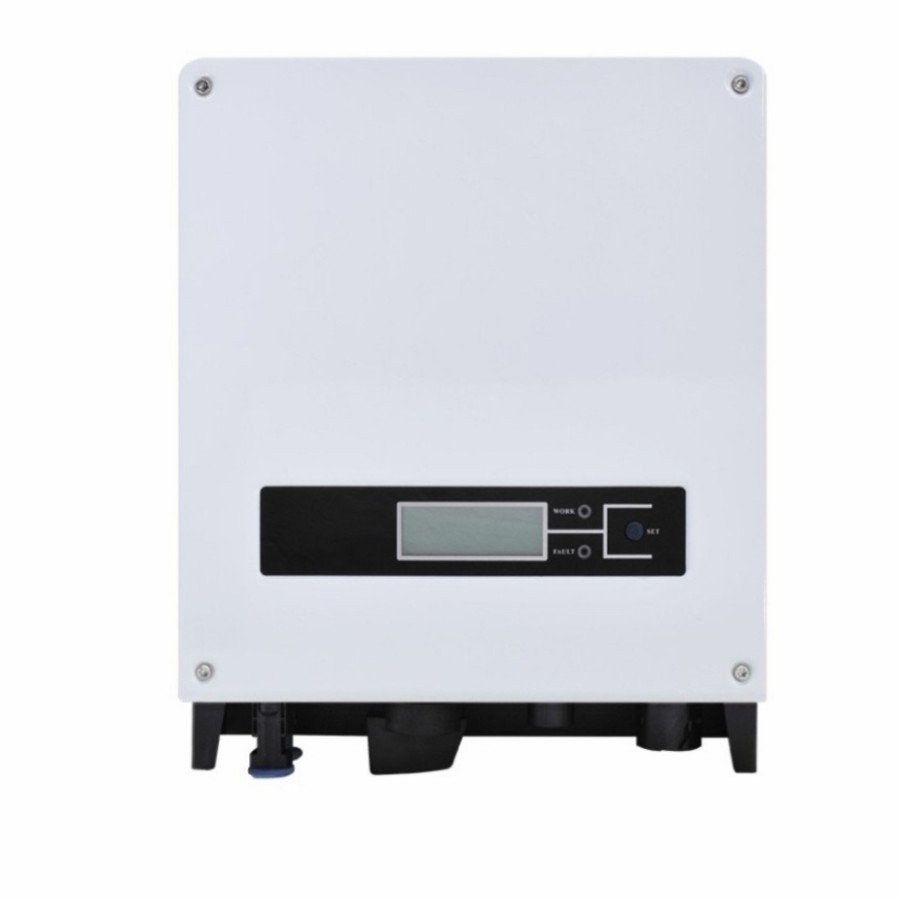

Penggunaan inverter On-Grid untuk mengubah arus DC dari panel surya menjadi arus AC. Inverter ini terangkai dalam sistem On-Grid dimana area tersebut harus terhubung dengan jaringan PLN yang ada, dan tanpa menggunaan baterai/aki.

Features Highlights:

Max. PV Voltage up to 500V

Single MPPT

High efficiency up to 97.5%

Smaller and lighter

IP65 Protection

Easy installation

TECHNICAL SPECIFICATIONS:
INPUT (DC)
Max. recomended PV power: 3.9 kW
Max. DC voltage: 500Vdc
MPPT voltage range: 100~490Vdc
Nominal DC voltage: 380Vdc
Full load MPPT voltage range: 240~400Vdc
Min./start DC voltage: 120/150Vdc
Number of MPPT trackers: 1
Strings per MPPT tracker: 1
Max. input current per MPPT tracker: 13A
OUTPUT (AC)
Max. AC output power: 3 kW
Nominal AC voltage: 230Vac
AC voltage range: 230Vac±20%
Nominal AC grid frequency: 50/60Hz
AC grid frequency range: 50/60Hz (±5Hz)
Max. output current: 14A
Power factor (cos Φ): 1
THDI: <3%
AC connection: LN+PE
Topology: Transformerless
EFFICIENCY
Max efficiency: 97.6%
PROTECTION DEVICE
AC leakage current fault protection: Yes
Ground fault protection: Yes
Anti-islanding protection: Yes
DC overvoltage protection: Yes
DC & AC surge protection: Yes
DC reverse-polarity protection: Yes
PHYSICAL
Dimension (W*L*D) in mm: 264 x 326 x 127
Weight: 8.6kg
ENVIRONMENT
Operating temperature range: –25°C~+60°C
Noise emission (typical): ≤25dB
Cooling type: Natural cooling
Protection rating: IP65
FEATURES
LCD display: Yes
Interfaces: RS485
Optional: WiFi Plug/GPRS Plug

*Specifications subject to change without prior notice
